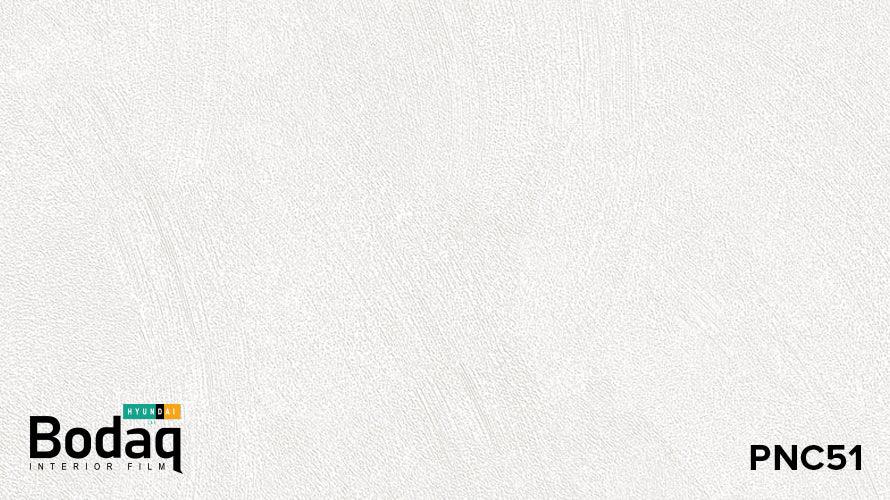

PNC51: Stone Blast

PNC51: Stone Blast

Bodaq's Premium Stone Range offers a stunning selection of concrete-inspired finishes. Capture the raw beauty and robust character of concrete without the weight and expense of traditional materials. These architectural films faithfully replicate the texture, color, and depth of real concrete, allowing you to transform any space effortlessly.

Request a Sample Download HD Scan Download Technical Specification

View full details
1 1
General Specifications Certification Durability & Maintenace

GENERAL SPECIFICATIONS

Category:

Stone

Finish:

Premium Concrete

Width :

122 cm

Full Roll Length :

40 mm

Full Roll Weight

25 g - 27 g

Warranty:

10 years

Storage Temperature:

5° C to 30° C

Storage Shelf Life:

2 Years

PRODUCT CONSTRUCTION

Film Type:

PVC

Thickness (Average by Category):

200 µm

Adhesive:

Clear,
Pressure Sensitive

Release Liner:

Bubble Free, Plottable

Pattern Direction:

Not Applicable

INSTALLATION

Installation Technique:

Dry

Installation Usage:

Interior

Installation Temperature:

12° C to 38° C

Max. Adhesive
Perfomance:

After 3-7 Days

Adhesive Stength:

10.29 N units/mm after 24h

Volatile Organic
Compound Testing (EN16516):

A+

Antimicrobial
Activity & Efficacy:

1.0 - 1.1 log

Abrasion Resistant
(ISO 9352:2012):

15.1 mg Weight Loss

Stain Resistance
(TCHIBO):

Excellent

Sponge Ability
(EN12956):

No Visible Change

Fire Rating (ASTM E84):

Class A (Class 1)

In Combustability
(KS F 2271:2016):

14.9 min

Flame Retardancy (DIN 4102-1):

B1 - Not Easily Flammable

Elevator Safety (TSSA, ASME A 17.1):

Compliant

Ce Wallcovering
(EN15102):

Compliant

Reach:

Compliant

Washability
(EN12956):

Extra Washable

Scratch Resistance
(ASTM D3363-05):

3H Pencil Hardness

Phthalates Content:

Not Detected

Heavy Metals Content:

Not Detected

PBBs & PBDES Content:

Not Detected

Stretch Capabilities:

Tensile Breaking Elongation

(Width Direction): 18.8 N units

Tensile Breaking Elongation

(Height / Grain Direction): 80%

Tensile Breaking Elongation

(Width Direction):
42.9 N Units / 10mm

Tensile Breaking Elongation

(Height / Grain Direction):
60.2 N Units / 10mm

Durability

Bodaq Interior Films provide exceptional resilience when it comes to
withstanding water, dirt, abrasion, UV radiation, and various types of wear,
including issues like yellowing, cracking, scaling, and delamination.

Maintenance

To maintain a perfect appearance and make your refinished surface last

longer, it is recommended that you do the following:

  1. Bodaq is easy to clean, so do not use harsh abrasive cleaners. If the stain
    is hard to remove, use ethanol mixed with water 1:1.
  2. Do not cut anything with a knife directly on the film.
  3. Do not use regular erasers/scrubbers on the film surface. We recommend
    using melamine sponges, or a microfiber towel.
  4. Do not put hot metal objects on the surface wrapped with the film. If the
    object's temperature is higher than 50 degrees Celsius, it may damage the
    film.
  5. In case of film peeling, please contact your installer to avoid further
    damage.
